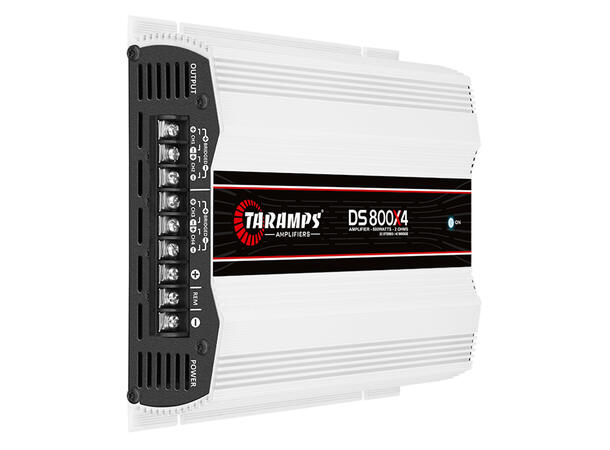

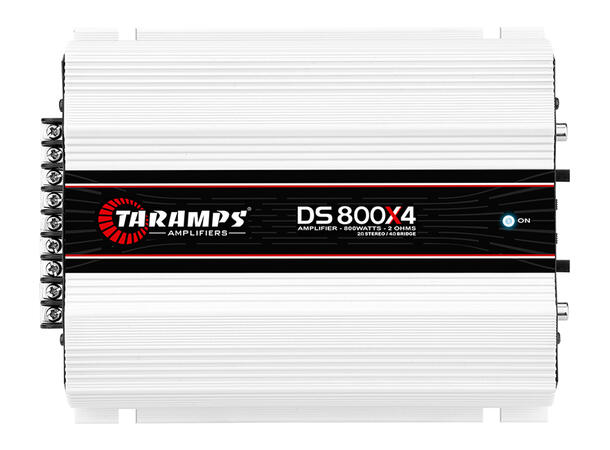

Taramps Bilforsterker DS 800x4, 2 ohm 4x200W
DS800X2 er en digital 4-kanals forsterker på hele 200 Watt RMS pr kanal i 2 Ohm. Du kan også brokoble og kjøre den som en 2 kanaler på 400 Watt RMS.
Spesifikasjoner
- Operation class: Class D
- Number of Channels: 04
- Maximum power: @ 12.6 VDC - 2 OHMS: 800W RMS (4 x 200W RMS)
@ 12.6 VDC - 4 OHMS: 544W RMS (4 x 136W RMS)
2 channels bridged - 2 OHMS: 800WRMS (2 x 400WRMS)
- Input Sensitivity: 250mV
- Signal to Noise Ratio: >88dB
- Frequency Response: 10Hz to 36KHz (-3dB)
- Crossover high pass (HPF): 90Hz (-12dB/8ª) Fixed
- Crossover low pass (LPF): 90Hz (-12dB/8ª) Fixed
- Input Impedance: 18K Ohms
- Output Impedance: 2 Ohms
- Protection system: Output overload
- Min. Supply Voltage: 9VDC
- Maximum Power Supply Voltage: 16VDC
- Consumption at rest: 1.4A
- Maximum music consumption: @12.6VDC: 43A
- Maximum consumption in sinusoidal signal: 86A
- Dimensions (WxHxD): 173 x 52 x 227 mm
- Weight: 1,43 kg
